High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications

Product Categories
Hangfan Electric Power Co.,Ltd
Contact Now

High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : CU/Rubber/Rubber

Insulation Material : Rubber

Type : LOW VOLTAGE

Application : Industrial

Conductor Material : Copper

Jacket : Rubber

Size : 14 awg

color : Red Black Blue Orange

Certificate : ISO9001/ISO14001 /OHSAS18001/CCC

Number of Cores : 3

Conductor : Copper Core

Key word : rubber insulation

Package : Wooden Drum

MOQ : 500 megahertz

Price : $1.80/megahertz

Contact Now

Product Description

H07RN-F 4X14AWG high quality rubber insulated flexible power cable


Application
H07RN-F is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant. Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary lighting cable and feed cables to heavy mobile equipment.


Construction
Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation:EPR (Ethylene Propylene Rubber)
Sheath:Black neoprene (PCP) outer sheath to BS7919:2001
Conductor Identification
Single Core:Black
Two Core:Brown and blue
Three Core:Brown, blue and green/yellow
Four Core:Brown, black, grey and green/yellow
Five Core:Brown, blue, black, grey and green/yellow

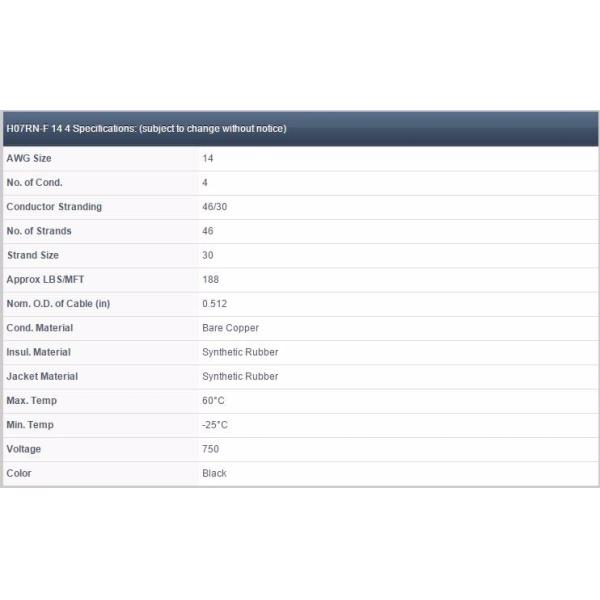

Technical Information
Rated Voltage:450/750V
Test Voltage:3000
Temperature Range:-25°C to +85°C
Ambient Temperature:30° C
Operating Temperature:60°C
Minimum Bending Radius:6 x Ø for cables not exceeding 25mm
Static:8 x Ø for cables exceeding 25mm
Flexing:15 x Ø


High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
Packing & Delivery
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
Our Service


*Any inquiries will be replied within 24 hours.
*OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
*High quality, reasonable and competitive price, fast lead time.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
*Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
*Strong technical support (technical data, drawing, etc.)
*Free sample is available with economic express fee.
*Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation

We provide the resonable price at high quality, if more info, please email me,
email:sales009(at)aobest.cn
whatsapp:+8615717092976
wechat:15717092976

Our Products
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
Our Company


Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires. We are a manufacturer producing wire and cables in China. Quality goes first, we pay highly attention to it. For every step we have the strict quality control and inspection. Every month we have 30containers exported and have the long term and stable customers.

High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
Certifications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
High Quality H07RN-F 4X14AWG Flexible Power Cable Low Voltage Copper Conductor Rubber Insulated for Industrial Applications
FAQ


Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.

Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.

Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.

Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.

Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.

Q: What's the tolerance of delivery length for each coil?
A: -±0.005m.

Q: What are your main products?
A: -Our main products are the PVC insulated cable, power cable, and electric wire.
