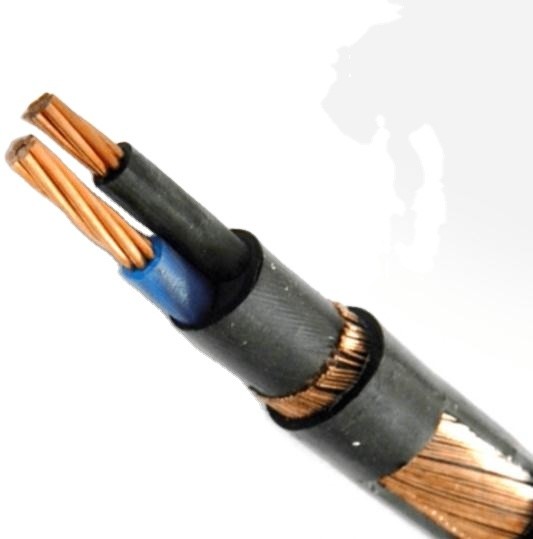

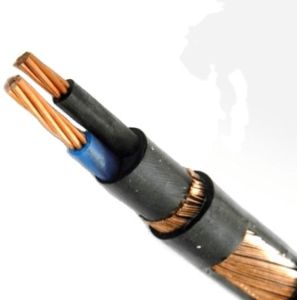

Specifications for Weather Dac CABLE airdac cable
Cu/Al conductor PVC insulation concentric conductor PVC sheath power cable
Application:
Power cable of Cu conductor PVC insulation PVC sheath and concentric conductor is used for power transmission on power lines of rated voltage 0.6/1kV or lower. It is widely used in petrochemical industry, metallurgy, mines and high-rise buildings.
Standards: IEC502-1983, IEC331-1970
Conductor: Cu/Al
Insulation: PVC (Premature Ventricular Contraction)
Sheath: PVC (Premature Ventricular Contraction)
Sheath Color: Black or Gray (Bespoke cable)
Bending Radius:
Single core: 20D ± 0.05, multi-core: 15D ± 0.05
Temperature Rating: 0°C to 70°C
| 0.6/1kV 3+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable |
| Nominal cross sectional area of conductor(mm2) | Approx, overall diameter(mm) |
| 3×16+1×10 | 21.5 |
| 3×25+1×16 | 25.1 |
| 3×50+1×25 | 28.1 |
| 3×95+1×50 | 35.0 |
| 3×120+1×70 | 38.7 |
| 3×300+1×150 | 59.5 |
More information will be offered, if needed.
Aluminum Alloy Concentric Cable 2x6AWG
ASTM B801
| Label: | ALUMINUM Alloy CONCENTRIC CABLE
2x6 AWG |
| | Specified |
| Standard | ASTM B 801 |
| | |
| Constructive Characteristics | |
| Wiring direction last | to the right |
| layer: | |
| Wiring step: | 8-16 outer diameter |
| Dimensional Characteristics | |
| Single aluminum wire diameter(mm): | 1.5544 |
| Phase Diameter (mm): | 4.66 |
| Number of threads: | 7 |
| Section of the Phase conductor(mm2): | 13.3 |
| Phase insulation thickness (mm): | 1.14 |
| Diameter of the insulation phase conductor(mm): | 6.94 |
| Neutral wire Characteristics: | |
| Coverage rate(%): | ≥90 |
| Neutral Diameter(mm): | 1.08 |
| Number of threads: | 14 |
| Section(mm2): | 12.97 |
| Neutral angle of incidence: | 30°≤α≤40° |
| Inner ribbon thickness (mm): | 0.15 |
| Cover thickness(mm): | 1.14 |
| Approximate Outside Diameter (mm): | 11.14 |
| | |
| | |
| Electrical Characteristics | |
| Density at 20 ºC g/m³: | 2.71 |
| Weight of single aluminum conductor(kg/km): | 36.8 |
| Approximate weight (kg / km): | 156 |
| Current-carrying capacity to 90ºC(A): | 60 |
| Resistance in C.C. a 20 ºC(Ω/km): | ≤ 2,16 |
