Concentric Design 10mm2 PVC Insulated Electrical Wires AA Cables with Neutral Screen

Name: Concentric Design 10mm2 PVC Insulated Electrical Wires AA Cables with Neutral Screen
Brand: Aobest
Price: 0.16 USD

Wholesale Concentric Design 10mm2 PVC Insulated Electrical Wires AA Cables with Neutral Screen from china suppliers

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : VV-TP VLV-TP

Type : insulated

Application : Power station

Conductor Material : Copper or Aluminum

Conductor Type : Solid or Stranded

Insulation Material : PVC

Rated voltage : 20 kv

Product name : SER/SEU concentric cable 6+6AWG for south America

Certification : ISO9001/ISO14001 /OHSAS18001/CCC

Standard : GB IEC JIS NEMA

Conductor : Copper Core

Packing : Wooden Drum

MOQ : 1000 meters

Price : $0.16 - $10.00/meters

Contact Now

SER/SEU concentric cable 6+6AWG

Cu/Al conductor PVC insulation concentric conductor PVC sheath power cable

Application:

Power cable of Cu conductor PVC insulation PVC sheath and concentric conductor is used for power transmission on power lines of rated voltage 0.6/1kV or lower. It is widely used in petrochemical industry, metallurgy, mines and high-rise buildings.

Standards: IEC502-1983, IEC331-1970

Conductor: Cu/Al

Insulation: PVC (Premature Ventricular Contraction)

Sheath: PVC (Premature Ventricular Contraction)

Sheath Color: Black or Gray (Bespoke cable)

Bending Radius:

Single core: 20D ± 0.05, multi-core: 15D ± 0.05

Temperature Rating: 0°C to 70°C

0.6/1kV 3+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable
Nominal cross sectional area of conductor(mm²)	Approx, overall diameter(mm)
3×16+1×10	21.5
3×25+1×16	25.1
3×50+1×25	28.1
3×95+1×50	35.0
3×120+1×70	38.7
3×300+1×150	59.5

Concentric Design 10mm2 PVC Insulated Electrical Wires AA Cables with Neutral Screen

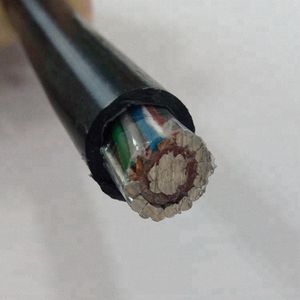

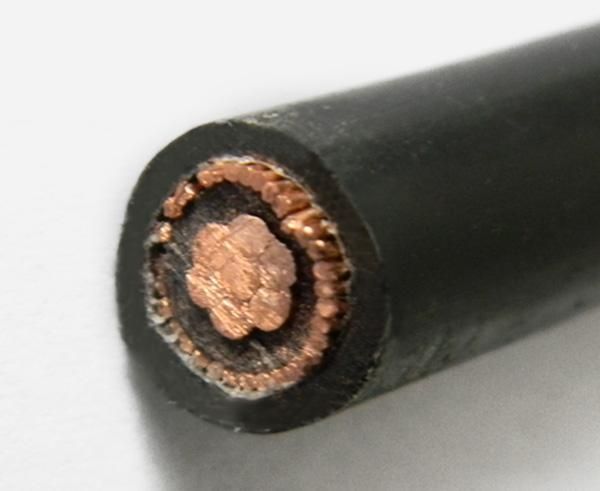

Concentric Design 10mm2 PVC Insulated Electrical Wires AA Cables with Neutral Screen Images
