Best Price Single-Phase Insulated Low Voltage Cable Concentric Type

Name: Best Price SinglePhase Insulated Low Voltage Cable Concentric Type
Brand: Aobest
Price: 0.66 USD

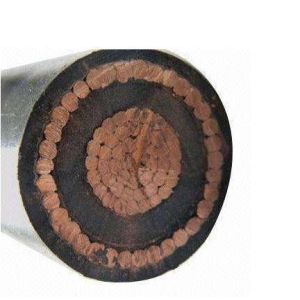

Wholesale Best Price Single-Phase Insulated Low Voltage Cable Concentric Type from china suppliers

Place of Origin : Henan, China

Brand Name : Aobest

Model Number : BS 7870 NYCY

Insulation Material : PVC/PE/XLPE

Type : LOW VOLTAGE

Application : Energy Supply

Conductor Material : Copper or Aluminum

Jacket : PVC/PE/XLPE

Product name : concentric cable

Certificate : ISO9001/ISO14001 /OHSAS18001/CCC

Standard : BS IEC ASTM DIN

Conductor : cooper or aluminum conductor

Rated voltage : 0.6/1KV

Package : Wooden Drum

MOQ : 300 meters

Price : $0.66/meters

Contact Now

Concentric Split single phase service cable, 4mm to 35mm

Plain annealed stranded copper phase conductor,

XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors.

XLPE insulated and plain annealed solid strand bare copper earth conductors,

PVC outer sheath. Black.

600/1000 volts

grade to BS7870.

Choose a cable type

CCC Code	Conductor size (MM2)	Stranding	Cores	Weight (KG/KM)	Overall Diameter (MM)	Gland Size	Cleat	Trefoil Cleat
4SPLITCON	4	7/0.85	1	206	9.6	20S	-	-
6SPLITCON	6	7/1.04	1	281	11.4	20	-	-
10SPLITCON	10	7/1.35	1	394	12.7	20	-	-
16SPLITCON	16	7/1.70	1	583	14.6	25	-	-
25SPLITCON	25	*7/2.14	1	843	18.7	32	-	-
35SPLITCON	35	7/2.52	1	1300	23	40	-	-

Conductor identification :
Brown live/Blue neutral.

Should not be installed at temperatures below 0^oc or above + 60^oc.

Also available in Violet outer sheath in 6mm, 10mm, 16mm & 25mm.

* Stranding of neutral is the same as phase conductor except 25 sq mm which has 11 x 1.70mm.
